Description
| Technology parameter sheet | ||
| Model | HESS5.5K10-EU | HESS5.5K20-EU |
| INVERTER | ||
| Maximum PV Input Power | 6500W | |
| Rated Output Power | 5500W | |
| Maximum Charging Power | 4096W | |
| PV INPUT (DC) | ||
| Nominal DC Voltage / Maximum DC Voltage | 360 VDC / 500 VDC | |
| Start-Up Voltage / Initial Feeding Voltage | 116 VDC / 150 VDC | |
| MPP Voltage Range | 120 VDC ~ 450 VDC | |
| Number of MPP Trackers / Maximum Input Current | 2 / 2 x 13 A | |
| GRID OUTPUT (AC) | ||
| Nominal Output Voltage | 208 / 220 / 230 / 240 VAC | |
| Output Voltage Range | 184 – 264.5 VAC* | |
| Maximum Output Current | 23.9 A* | |
| Maximum Conversion Effificiency (DC / AC) | 96% | |
| European Effificiency @ Vnominal | 95% | |
| AC INPUT | ||
| AC Start-Up Voltage / Auto Restart Voltage | 120 / 140 VAC / 180 VAC | |
| Acceptable Input Voltage Range | 170-280 VAC | |
| Maximum AC Input Current | 40A | |
| BATTERY MODE OUTPUT (AC) | ||
| Nominal Output Voltage | 208 / 220 / 230 / 240 VAC | |
| Effificiency (DC to AC) | 93% | |
| BATTERY TECHNICAL SPECIFICATIONS | ||
| Nominal DC Voltage | 48 VDC | |
| Battery Capacity | 200Ah | 400Ah |
| Maximum Charging Current | 100A | |

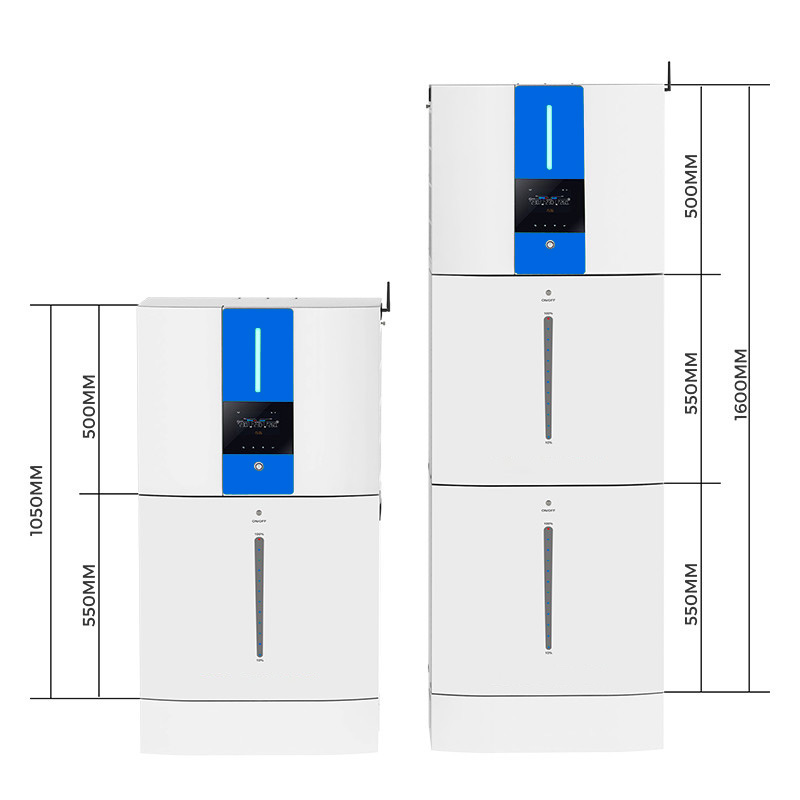

| Dimension, D x W x H (mm) | 621 x 214 x 550 | 621 x 214 x 1100 |
| Net Weight (kg) | 55 | 110 |
| Energy | 10.24KWH | 20.48KWH |
| Nominal Voltage | 51.2 VDC | |
| Full Charge Voltage (FC) | 56V | |
| Full Discharge Voltage (FD) | 45V | |
| Maximum Continuous Discharging Current | 120A | |
| Maximum Discharging Current | 120 A at 1 min | |
| Protection | BMS, Breaker | |
| Charge Voltage | 56V | |
| Charge Current | 20 A (0.2 C) | |
| Maximum Charge Current | 100 A (0.5 C) | |
| Standard Charge Method | 0.2 C CC (Constant current) charge to FC, CV (Constant voltage FC) charge till charge current decline to < 0.05 C |
|
| Inner Resistance | < 20 m Ohm | |
Product Performance
1. This is a multi-function inverter/charger/solar system.
2. Combining functions of inverter, solar charger and battery to offer uninterruptible power support with portable size.
3. LCD display, configure input voltage range for home appliances and personal computers, configure battery charging current based on applications, configure AC/Solar Charge priority.
4. Compatible to mains voltage or generator power, auto restart while AC is recovering.
5. Users can flexibly match battery capacity, standard battery packages or external batteries.
6. It combines a wide PV input range MPPT controller, can convert solar energy from PV to loads directly.
7. Integrated design, Easy transportion and installation.
8. Overload/Over temperature/short circuit protection.
9. Our product are CE/ ROSH/ VDE/ MSDS/ UN38.3/ IEC approved, meeting various certification requirements for different countries.

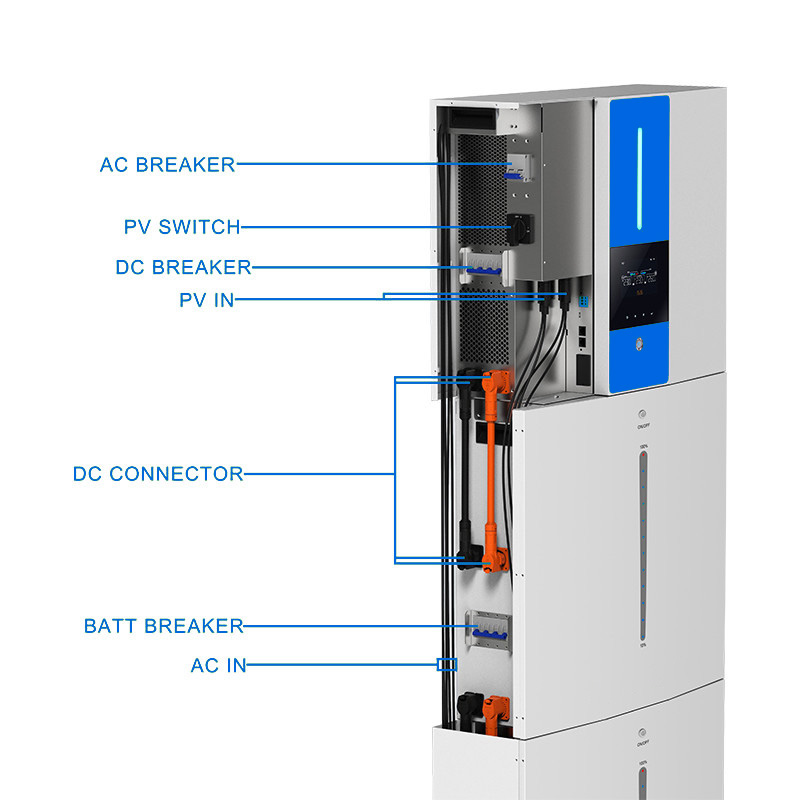

INTERIOR STRUCTURE
PRODUCT ADVANTAGE
Product Features
-Safety:
LiFePO4 LFP Battery, stable and safe.
Module, pack, system, triple protection.
-Simple:
Modulat desian, single person con carry and install it.
Plug and play, 30 min quick installation.
Space saving; 0.15 sqm foof print.

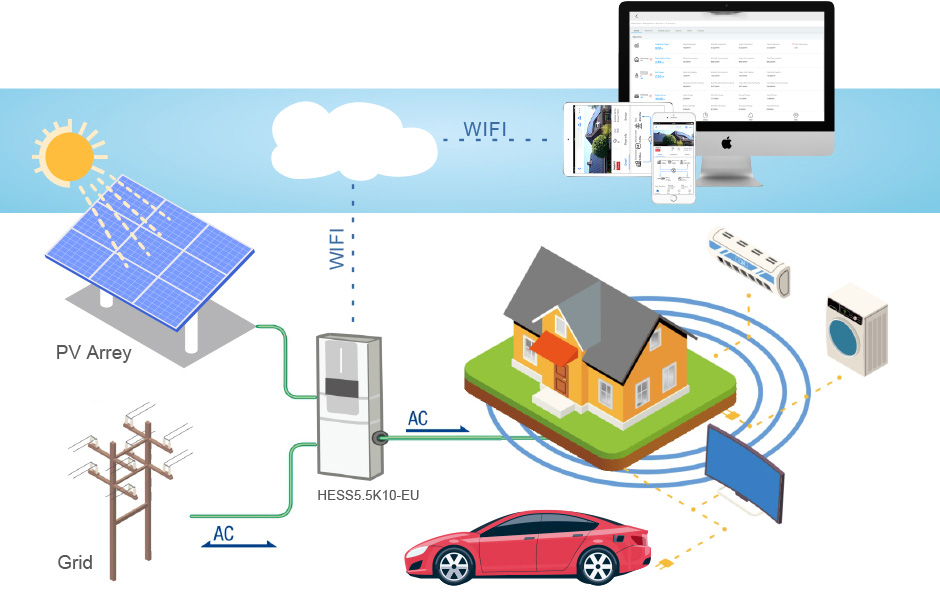

-Interconnection:
Global cloud plaform Mobile APP.
Anytime and any where.
Open APL, suppart power internet applications.
Manufacture Technology
SUPER SAFETY TEST
Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.
